ATP Air Angle Grinders
Models 356HSL & 465HSL
These air angle grinders with their rugged .6hp motors are primarily used with 3" and 4" Type 27 grinding wheels. They can be used for many cleaning, deburring, blending and smoothing applications found at ship yards, foundries, refineries, fabrication shops, power plants and a variety of other industries If you have a question or need assistance in selecting the right vertical grinder for your application, please call us at 1-877-702-8665 or click here to contact us online.
Air Angle Grinders
Models ATP 356HSL (3 HP) ATP 465HSL (4HP)
Features
|
|
|
|
|
||
 |
 |
||
|

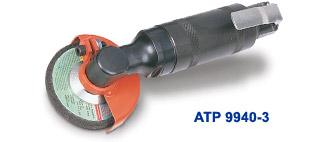

ATP 9940-3 Air Angle Grinder
|

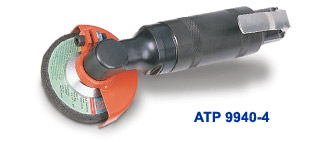

ATP 9940L-4 Air Angle Grinder
|
Angle Grinders Specifications
| Angle Housing |
Free Speed rpm | Wheel Guard Dia. | Spindle Thread | Overall length |
Net Weight | Motor Housing |
Model No. |
||
| IIn. / mm | In. | In. | mm | lb. | kg | ||||
| Short | 13,500 | 3" / 76mm | 3/8" - 24 | 7-5/8 | 194 | 3 lbs. | 1.4 | Steel | ATP 9940-3 |
| Short | 13,500 | 4" / 102mm | 3/8" - 24 | 7-5/8 | 194 | 3 lbs. | 1.4 | Steel | ATP 9940-4 |
| Long | 13,500 | 3" / 76mm | 3/8" - 24 | 10" | 254 | 3.3 lbs. | 1.5 | Steel | ATP 9940L-3 |
| Long | 13,500 | 4" / 102mm | 3/8" - 24 | 10" | 254 | 3.3 lbs. | 1.5 | Steel | ATP 9940L-4 |
