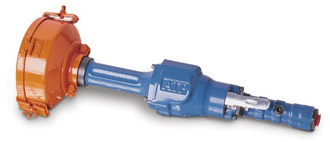

ATP - Horizontal Air Grinder

Clairton offers 4 ATP horizontal air grinders in 3hp or 4hp models. For more information and specifications on the ATP 356 & 465 grinders, look below. If you have a question or need assistance in selecting the right vertical grinder for your application, please call us at 1-877-702-8665 or click here to contact us online.

Horizontal Air Grinders
Models ATP 356HSL (3 HP) ATP 465HSL (4HP)

Standard Equipment

Safety Lock-off Lever Throttle
Wheel Flange (2") and Spindle Nut
Wheel Guard (as specified by model)
Spindle Wrench 1100-200 (2") and 1102-015 (5/32")
Allen Type Wrench

Extra Cost Equipment:

Spindle/Wheel Retention Screw and Retention Screw
Collar 650-60
Optional wheel guards


ATP 356HSL-45-8 Horizontal Safety Lever 3hp, 4500 rpm 8" Guard		ATP 356HSL-60-6 Horizontal Safety Lever 3hp, 6000 rpm 6" Guard

ATP 465HSL-45-8 Horizontal Safety Lever 4hp, 4500 rpm 8" Guard		ATP 465HSL-60-6 Horizontal Safety Lever 4hp, 6000 rpm 6" Guard

ATP Horizontal Air Grinders Specifications - 3&4 HP

Wheel Guard	Wheel Capacity Diameter In. (mm)	Height to bottom of Flange	Side to Center Distance	Spindle Thread (Inch)	Air Inlet Thread	Hose Size (ID)	Free Speed RPM	Rated hp	Model No.
8"	8" Straight Wheels or Wire Brush	20-1/8" 524mm	1-1/4" 32mm	5/8"-11	1/2" NPT	1/2" 13mm	4500	3 2.2kW	ATP 356HSL-45-8
6"	6" Straight Wheels or Wire Brush	20-1/8" 524mm	1-1/4" 32mm	5/8"-11	1/2" NPT	1/2" 13mm	6000	3 2.2kW	ATP 356HSL-60-6
8"	8" Straight Wheels or Wire Brush	20-7/8" 530mm	1-1/4" 32mm	5/8"-11	1/2" NPT	1/2" 13mm	4500	4 3.3kW	ATP 465HSL-45-8
6"	6" Straight Wheels or Wire Brush	20-7/8" 530mm	1-1/4" 32mm	5/8"-11	1/2" NPT	1/2" 13mm	6000	4 3.3kW	ATP 465HSL-60-6
